    Too damp to clear any leaves, but I did a bit of "essential equipment maintenance."

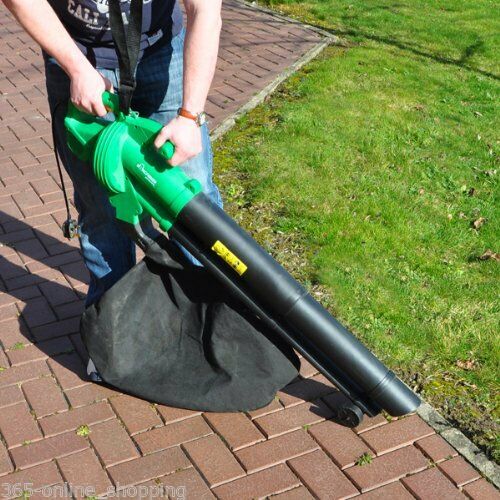

    I've had one of these cheap Chinese, Kingfisher garden vacs for about five years, they are only about £35 on eBay.



    They've a very strong 2,600w motor and are adequate for small gardens like ours.

    The problem is that they can't tell leaves from soil, so over time they pick up small amounts of fine damp soil with the leaves which the fan compresses and it sticks all around the fan housing reducing the efficiency. You can dislodge some of it if you poke a screwdriver up where the bag attaches, but not much.

    Now there's none of that "No user accessible parts," nonsense, the whole thing comes apart into two halves. (about 20 screws, mind).

    So every few months, like this morning, I give it a service which anyone who has one can do, (unplug it first of course). Take the tube off first then it's easier to manage.

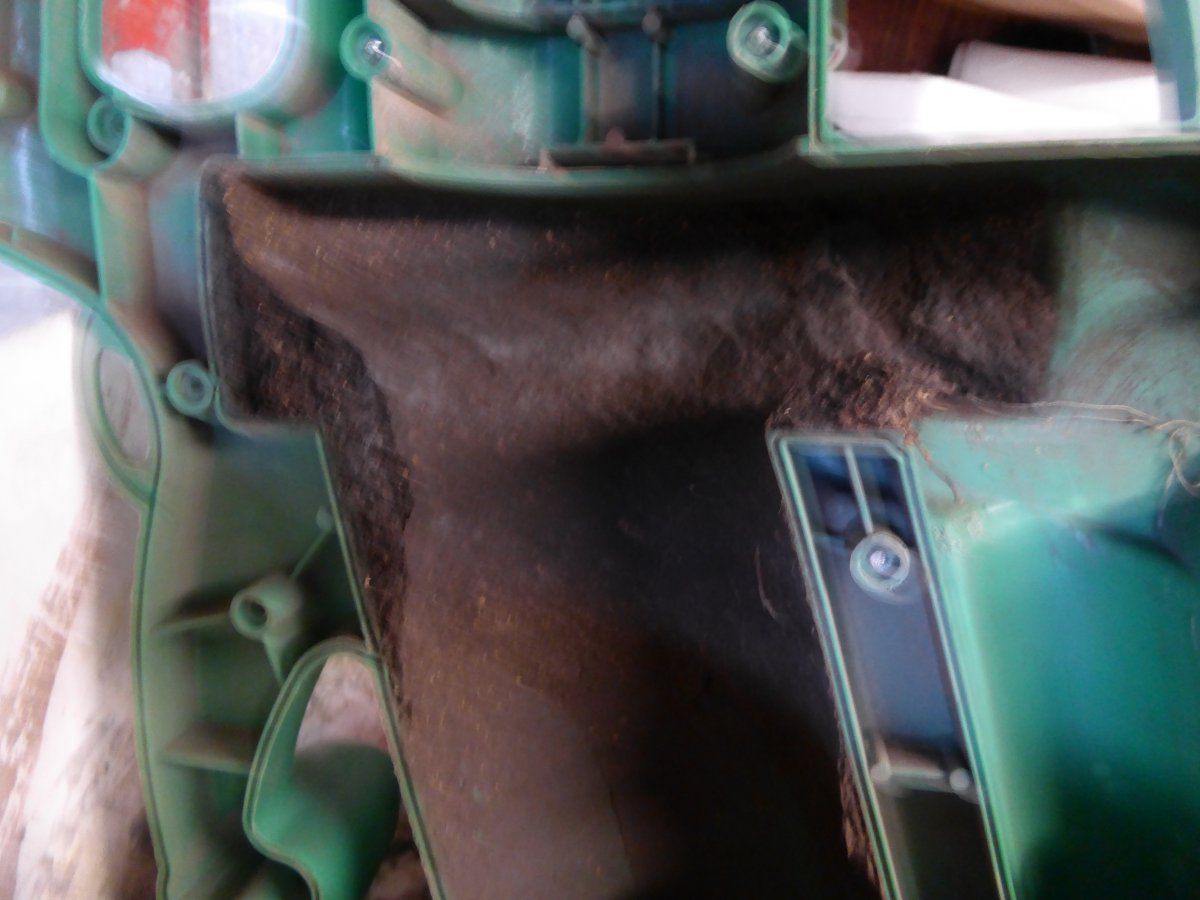

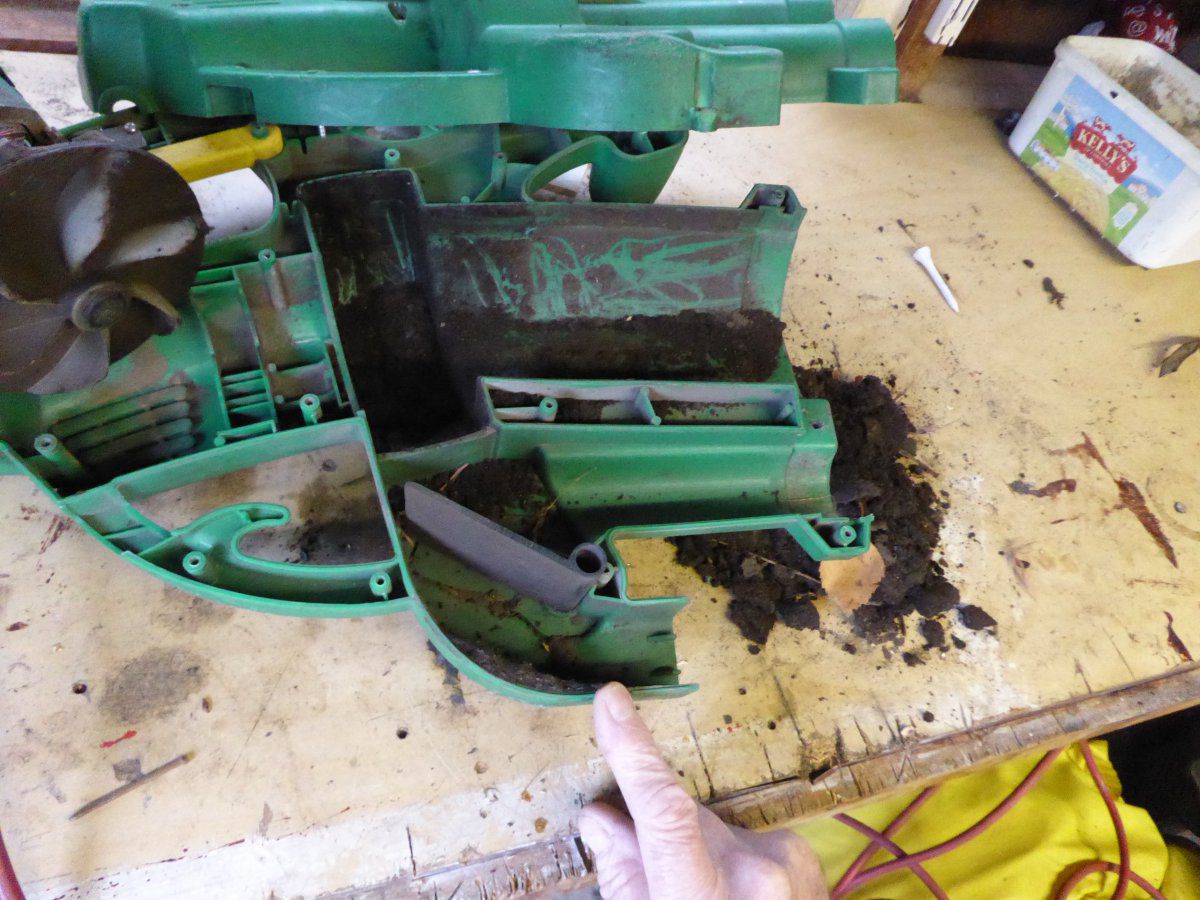

    As you will see there was hell of a lot of soil caked around the internal surfaces and the little flap that changes it from blow to suck was partially jammed.



    After a good clean.

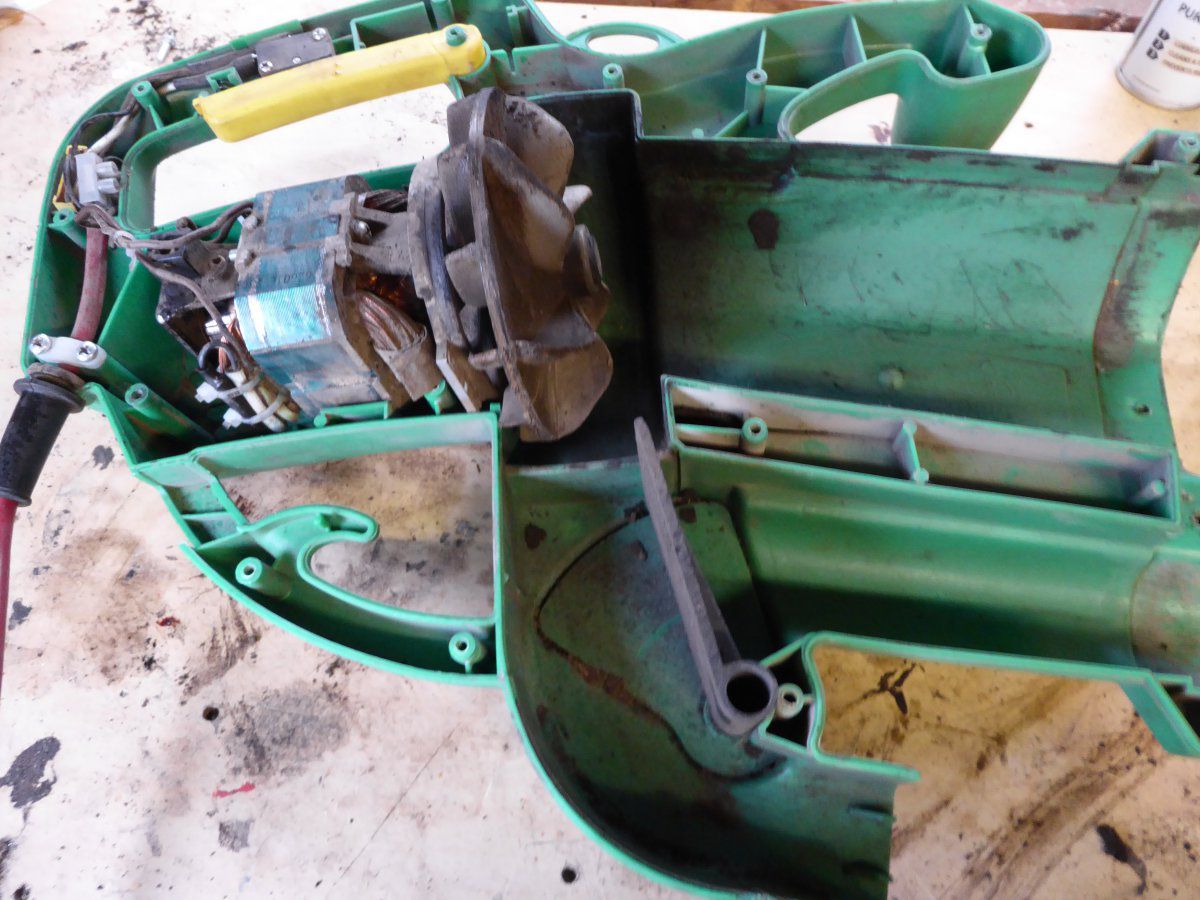

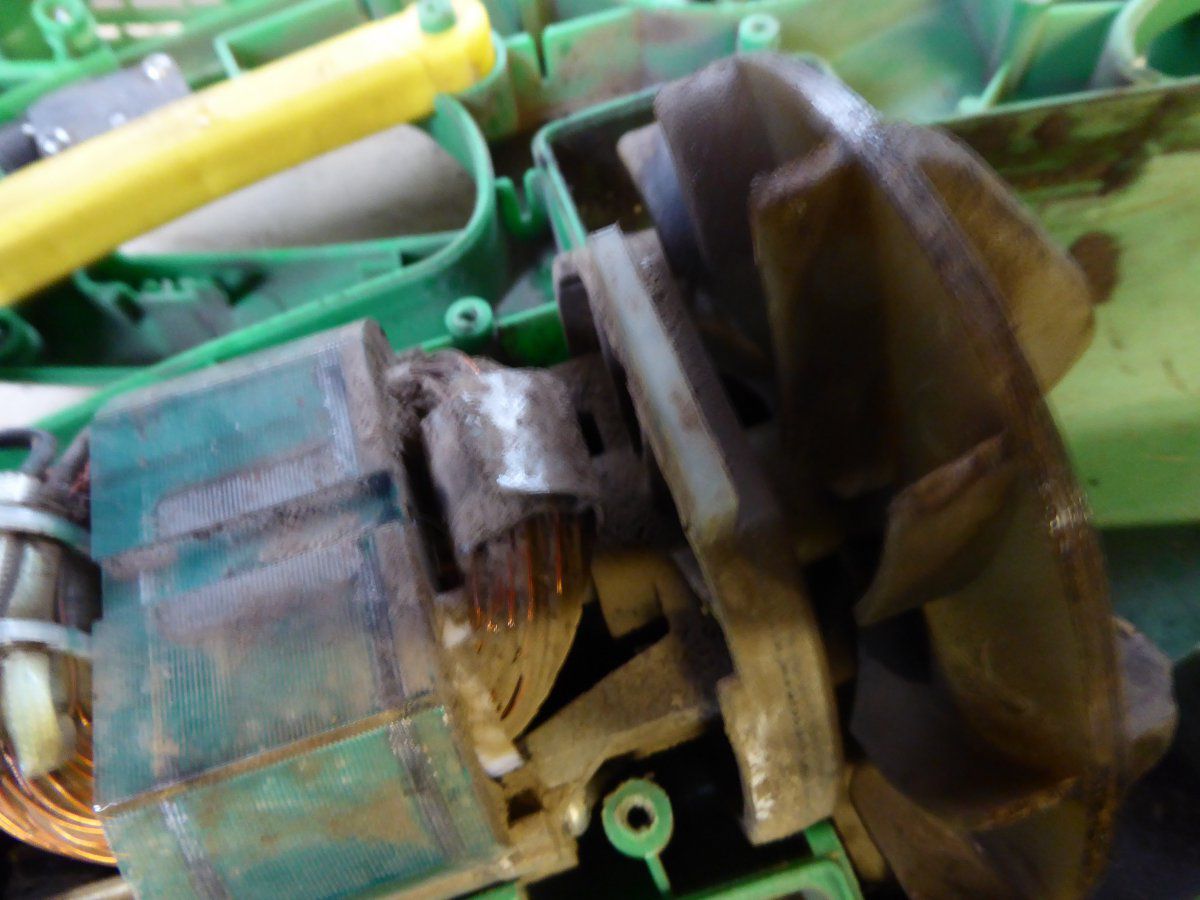

    The motor can be lifted out for better access, but the wires are still connected
    It's important after cleaning, to make sure the flap moves freely and locks into either position. (the handle is underneath it)
    The motor has lugs on it top and bottom, which fit into both halves of the casing, so you can't put it back the wrong way round.
    Just make sure the wires fit back where they should and don't get jammed between the two halves of the casing.



    Then a drop of oil on the rear bearing and it's ready for reassembly.

    The reduction of power over time isn't that noticeable until it's had a service and you see how much you had lost.

  2. Loading...


  3. Jerry Sullivan

    Jerry Sullivan Garden Experimenter Plants Contributor

    Joined:
    Nov 10, 2010
    Messages:
    7,177
    Likes Received:
    3,020
    Location:
    Chelmsford MA
    Three cheers for taking the vac apart to clean it. And another cheer for having it work properly after putting it back together without any left over parts.:)

    Jerry

  4. eileen

    eileen Resident Taxonomist Staff Member Moderator Plants Contributor

    Joined:
    Feb 7, 2005
    Messages:
    29,088
    Likes Received:
    6,277
    Location:
    Scotland
    Our eldest lad does this for us as well as servicing our hedge trimmers. So handy to have someone who's willing to do these jobs and without pay!!

  5. Doghouse Riley

    Doghouse Riley Young Pine

    Joined:
    Oct 17, 2019
    Messages:
    2,031
    Likes Received:
    4,954
    Location:
    South Manchester
    It's a simple enough job, there are no loose parts. The only thing that can wear is the fan, but after five years mine still OK as they are made of a very tough material.

    Growingpains and Dirtmechanic like this.



    Advertisement
  6. Dirtmechanic

    Dirtmechanic Young Pine

    Joined:
    Feb 6, 2019
    Messages:
    1,819
    Likes Received:
    3,055
    Location:
    Birmingham, AL zone 8a
    A tough guy might have left it plugged in.

  7. Doghouse Riley

    Doghouse Riley Young Pine

    Joined:
    Oct 17, 2019
    Messages:
    2,031
    Likes Received:
    4,954
    Location:
    South Manchester
    It's the age we're in and "elf n' safety."

    You have to indemnify yourself with any advice you give.

    "Decades ago cars' handbooks told you how to adjust the valves, now they tell you not to drink the contents of the battery."

    The first 100 pages of my car's handbook are all "elf n' safety"

    True!

    Last edited: Dec 4, 2020
    Cayuga Morning and Growingpains like this.
  8. Growingpains

    Growingpains Young Pine

    Joined:
    Aug 13, 2008
    Messages:
    1,840
    Likes Received:
    1,505
    Location:
    Michigan
    Riley, you're among those who are self reliant and there are few today. We have become a "Throw away" society, by design.
    A blower serves as the tool for gathering leaves, assisted by a rake.
    Then the mulching lawnmower is used to create a fine mulch.
